Home > Lacing Anchors >

Removable Blankets Lacing Anchors Hooks Washers With Two Holes

Hebei Xiangyi metal products Co., Ltd
Contact Now

Removable Blankets Lacing Anchors Hooks Washers With Two Holes

Brand Name : XIANGYI

Model Number : lacing washer

Certification : ISO 9001

Place of Origin : China

MOQ : 10.000 pcs

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100.000 pcs per week

Delivery Time : 15 days after confirm the order

Packaging Details : carton+ wooden pallet

Product : Lacing washer

Material : stainless steel 304/316

Type : one hole or two hole

Washer size : 1 mm x22mm

Hole size : 5mm

hook size : 5mm x11mm

Sample : freely

Packing : to be request

Contact Now

Removable Blankets Lacing Anchors Hooks & Washers With Two Holes

Quick details of removable blankets Lacing Anchors Hooks & Washers :

Romovable blankets lacing anchors is a nails inconsisting of a pin and tabbed or hooked washer ,mainly used

in the fabrication of lacing blankets or removable blankets/pads ,the pins is pressed through the insulation

material , the end are locked with a self locking washer ,the two sides of the blankets can be "laced" together by

the hooks with tie wire

Product name:removable blankets lacing anchors hooks&washers

Materials: Stainless Steel 304/316/316L
Head size :7/8" for the round base

Hook size :5x11mm

Pin diameter:14ga (2.0mm) ,12ga (2.7mm)

Pin length:1-1/2" ,2-1/2" is in common , other size to be request

Other accessories :quilting pins ,self locking washer .double hole lacing anchor ,single hole lacing anchor ,

lacing washer ,D rings ,O rings

Specification of removable blankets Lacing Anchors Hooks & Washers :

specification of removable blankets Lacing Anchors Hooks & Washers :
material materil thickness size hole size
stainless steel 304/316 1mm 22mm 5mm
type hook length hook width custom

one hole type,

two holes type

hook type

washer type

11mm

5mm

we can be according to your requirements to design the types

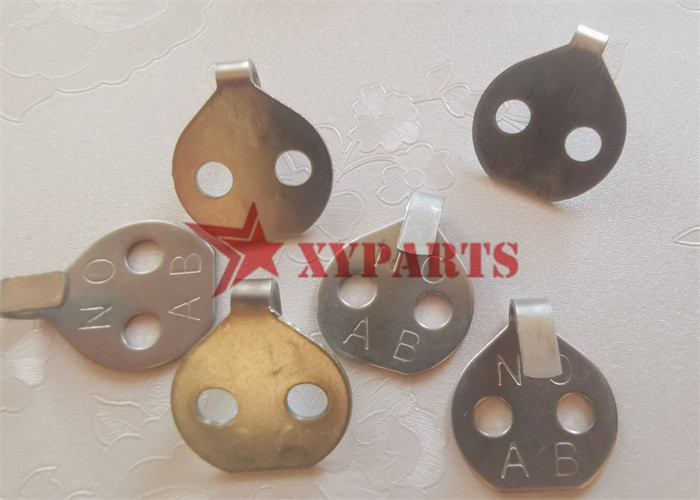

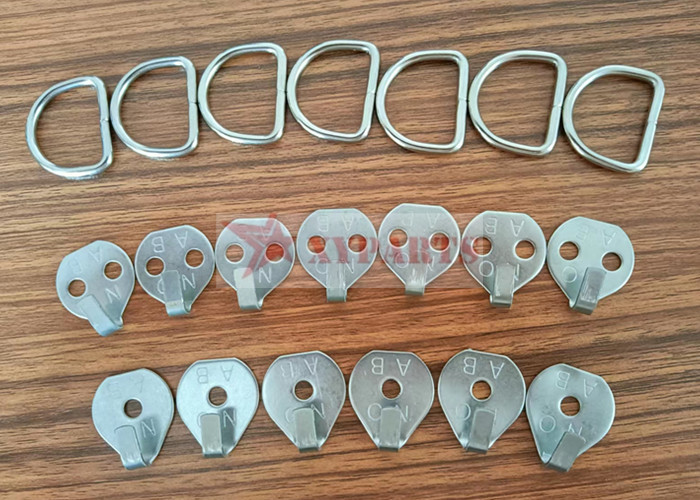

Pic of removable blankets Lacing Anchors Hooks & Washers :

Removable Blankets Lacing Anchors Hooks Washers With Two Holes

Removable Blankets Lacing Anchors Hooks Washers With Two Holes

Application of removable blankets Lacing Anchors Hooks & Washers :

According to the U.S. Department of Energy, removable and reusable insulation pads can save up to 5% on your energy bill. Our extensive AMI-FAB® removable insulation system includes all the components you need for custom insulation pad fabrication. Select from a wide range of extreme temperature products, including: Silicone coated fabrics for water, oil and heat resistance
PTFE coated fabrics for chemical resistance
Fiberglass mat
Silica thread
Wire mesh
Drawstring
Hardware

Lacing Washer can also be used with a Lacing Ring and a second L100 lacing washer, which are fastened to the insulation blanket with a tie wire. One advantage with the lacing system is the positive detention of the lacing wire. The insulation blanket can be loosened for access or repositioning, without having to worry about the lacing wire falling away from the hooks. It is also advantageous in maintaining the position of the lacing wire when insulating complex shapes. All L100 Lacing Washers are stamped "NO AB" to indicate no asbestos, at no additional cost.

Removable Blankets Lacing Anchors Hooks Washers With Two Holes

FAQ For XiangYi Company :

Q1. How about the Delivery time?
A. About 15-20 days.
Q2. What kind of payments does jenor support?
A. T/T,L/C ,D/Pare accepted or other methods negotiable.
Q3. Can you produce according to customers' design?
A. Sure, we are professional manufacturer, OEM and ODM are both welcome.
We'll offer you the quotation as soon as possible once receive your inquiry,so don't hesitate to

contact us. We can produce the product under your brand name, also the size can be changed

as your requirement.

XiangYi Company Catalog:

1.Perforated base insulation hanger pins

2.Insulation Self-stick pins

3.Insulation CD weld pins

4.Insulation bimetallic weld pins

5.Cup head weld pins

6.Lacing anchors (quilting pins ,lacing anchor ,lacing washer ,lacing rings)

7.Solar panel mesh clips

8.Self-locking washer and dome cap washer
