Stainless Steel Capped Star Lock Washers For Imperial Round Shafts
Specifications Of The Stainless Steel Capped Star Lock Washers:
Star lock washers for use not only on precision-machined shafts but also on tubes, cast parts,
plastic shafts and studs.
Available for shaft sizes 1.5mm to 25mm. The washers are pushed on to the shaft causing
the prongs to grip the shaft tightly, locking the washers in place with initial tension.
 | | Origin | China | | Factory | Hebei Xiangyi Metal Product Co.,ltd | | Name | capped star lock washers | | Material | stainless steel | | Usage | to fix imperial round shafts | | Samples | supported | | Package design | supported | |

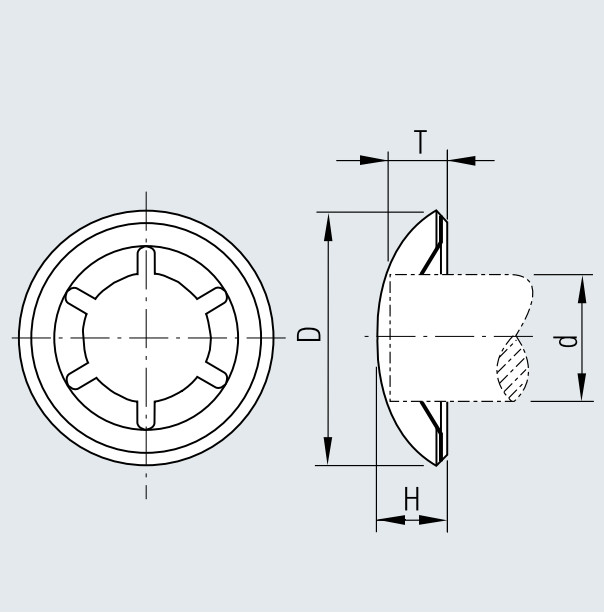

| Outside D | Height H | Shaft Penetration T max | Number Of Legs | Shaft d |
| 10.6mm | 3mm | 2.5mm | 4 | 1/16" 3/32" 1/8" |
| 12.3mm | 3.8mm | 3mm | 5 | 5/32" |
| 12.3mm | 3.8mm | 3mm | 6 | 3/16" 7/32" |
| 16.1mm | 5.1mm | 4mm | 6 | 1/4" 9/32" 5/16" |
| 19.7mm | 5.8mm | 4.5mm | 6 | 11/32" 3/8" 13/32" |
| 26mm | 7.5mm | 6mm | 6 | 7/16" 1/2" 17/32" 5/8" |
| 38.2mm | 11.7mm | 8.7mm | 9 | 3/4" |
| 39.8mm | 13mm | 9.5mm | 9 | 7/8" |
| 43mm | 12.5mm | 9.5mm | 9 | 1" |

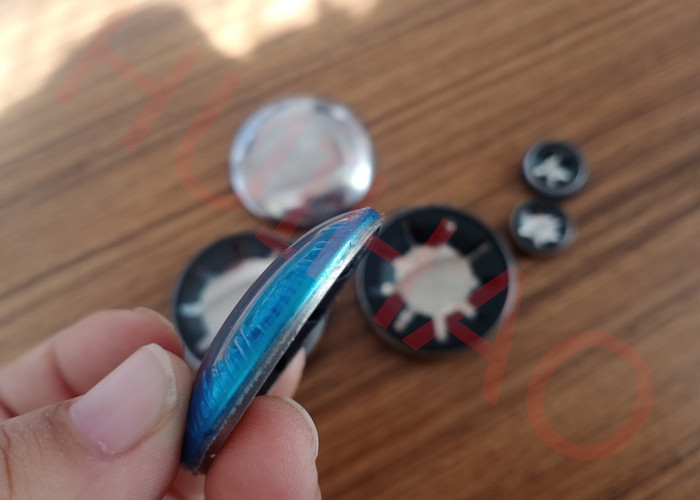

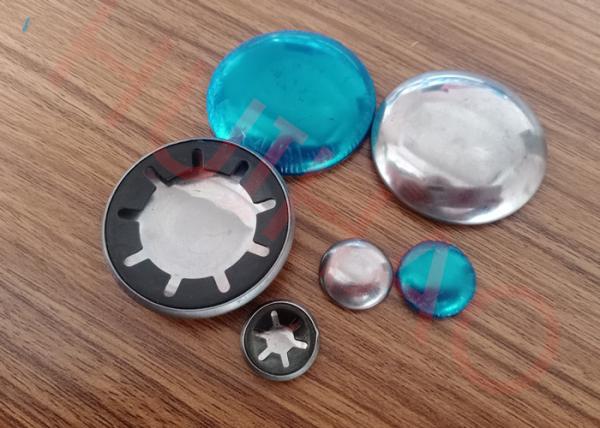

Detailed Images Of The Capped Starlock Washers:
| Capped star lock washer with carbon steel insert | Capped star lock washer with ss material cap |
 |  |

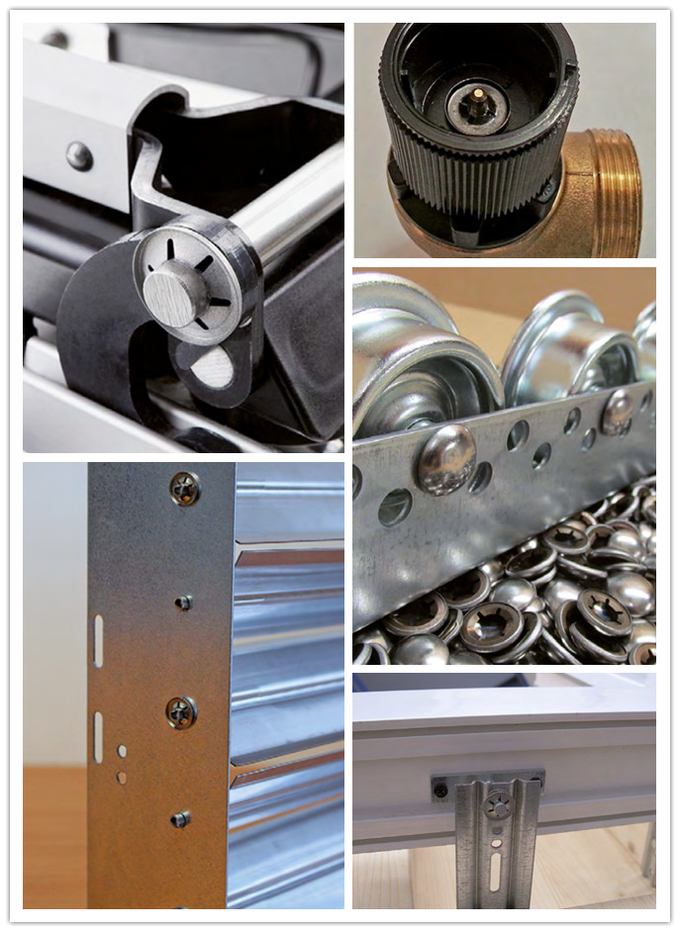

Application Of The Stainless Steel Capped Starlock Washers:
Automotive
Window installation
Transportation
Medical technology
Heating systems
Conveyor systems
A/C and ventilation applications
FAQ Of Xiangyi Metal Product Co.,Ltd
1. Are you a manufacture or a trader?
We are a manufacture, located in Hebei province, China.
2. Do you support product customization?
Yes, the material, the surface finish, the wire diameter, the length all could be customized.
3. Can i get samples?
Yes, samples for quality confirm are supported in our company.
4. How do you control and ensure product quality?
1) Confirm with you every details before quoting.
2) Before production, we will reconfirm all the details again.
3) During production, we strictly implement "IATF 16949 Quality Management System" standard.
4) We will send you videos and pictures during the production and shipment process.
5. What's your advantages?
Cooperate with us, we can ensure:
1) Competitive price: we sale what we manufacture.
2) On-time delivery: we have the auto-production line to ensure the on-time delivery.
3) Excellent quality: we have rich experience for the, our products are in line with international standard.
4) Good after-sale service: we offer good after-sale service for each order.
