Specifications Of The CD Weld Pins And Fittings
CD Weld Pins And Fittings are widely used in the shipbuilding industry. Shipbuilding industry is
the industry which initiated stud pin welding. A lot of CD weld pins are adopted for fixing wood
deck to steel deck, fixing porthole and hatch, fixing piping and wiring and insulation etc.
| | Length | 25mm, 30mm, 35mm, 40mm, 45mm, 50mm, 55mm, 60mm, 65mm, 70mm, 75mm, 80mm, 85mm, 90mm, 100mm, 110mm, 125mm 150mm etc. | | Diameter | 10GA(3.4mm), 3mm, 12GA(2.7mm) 14GA(2.0mm) | | Material | Stainless steel, mild steel, aluminum | | Surface | Stainless steel: polishing, passivation
Mild steel: zinc coating,copper plating | | Features | Standard weld points, easy welding
Pins soft, easy bending over
Sharp points,easy going through any insulation blanket | | Application | Capacitor Discharge CD Weld Pins could be applied for the insulation of HVAC ducts, pipes, buildings, incinerators, equipment exposed to fire, plane cabins, spacecrafts, water towers, warehouses, and much more. Steel structures insulated can against corrosion and high temperatures. | | Supply Capability | 10000 pcs/hour | | Remark | Technical parameters are available upon request | |

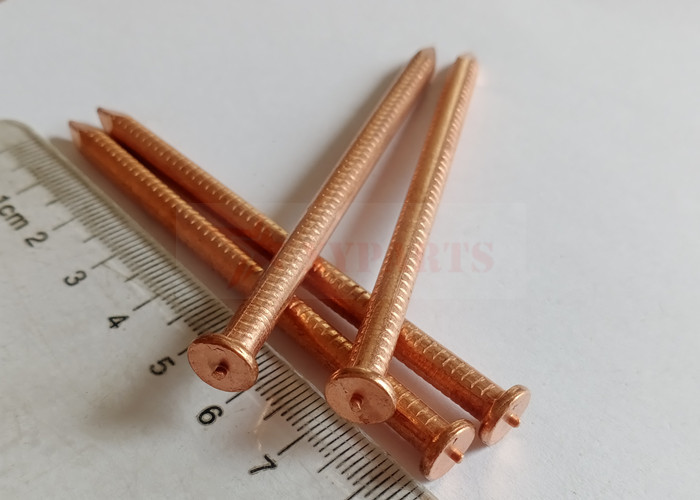

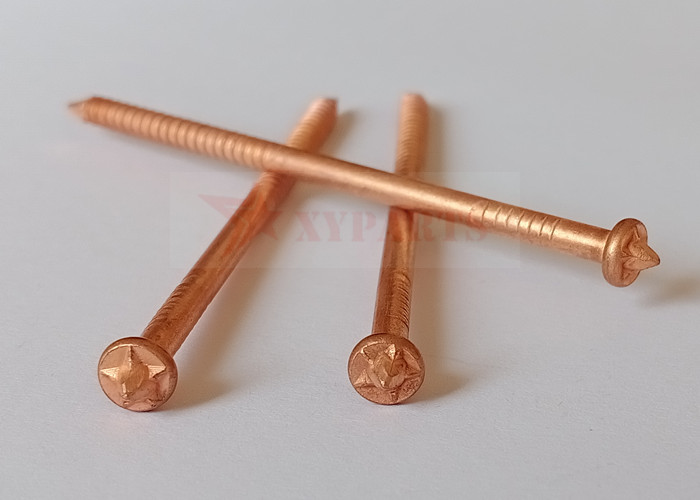

 | Name: Capacitor Discharge CD Weld Pins Diameter: 3mm Length: 65mm Material: Mild Steel Surface Finish: Copper Coating |
| Name: Capacitor Discharge CD Weld Pins Diameter: 4mm Length: 245mm Material: Mild Steel Surface Finish: Copper Coating |  |
 | Name: Capacitor Discharge CD Weld Pins Diameter: 5mm Length: 150mm Material: Mild Steel Surface Finish: Copper Coating |

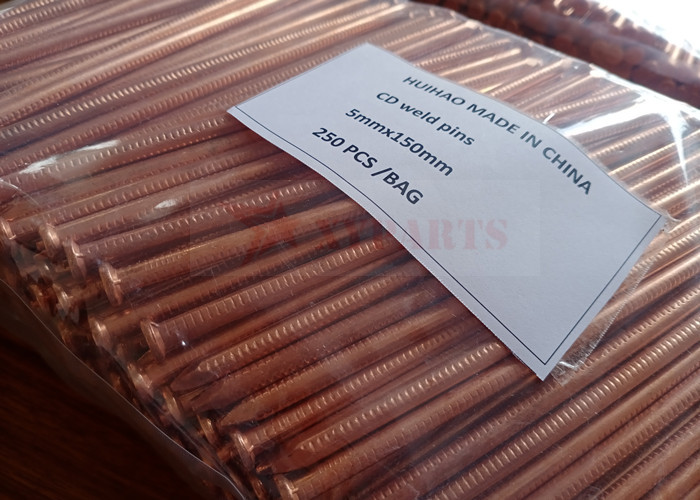

Package Of The Capacitor Discharge CD Weld Pins And Fittings
| 1. 100 pcs, 200 pcs, 250pcs, 300pcs, 500 pcs in one plastic bag (according the pin length ), 2. 10 bags in one carton box, 3. then in one pallet 4. the package can be can according your request |
 |
FAQ Of Xiangyi Metal Product Co.,Ltd
1. Are you a manufacture or a trader?
We are a manufacture, located in Hebei province, China.
2. Do you support product customization?
Yes, the material, the surface finish, the wire diameter, the length all could be customized.
3. Can i get samples?
Yes, samples for quality confirm are supported in our company.
4. How do you control and ensure product quality?
1) Confirm with you every details before quoting.
2) Before production, we will reconfirm all the details again.
3) During production, we strictly implement "IATF 16949 Quality Management System" standard.
4) We will send you videos and pictures during the production and shipment process.
