Industrial Sheet Metal Fabrication Used CD Weld Pins Fastener 3mm Dia
Quick Details Of CD Weld Stud Inulation Pins 3mm Dia:
CD Weld Pins Fastener are wilded used for the industrial sheet metal fabrication.
Product Name: CD Weld Stud Insulation Pins
Material treatment: anneaded mild steel wire, anneaded stainless steel wire, copper wire
is for specifical order
Diameter of weld pins: 3.0mm in common size, other size can be customized
Pin length: the min length is 10mm, the longest can be 370mm
Surface treatment : copper plated , zinc coated for mild steel material, polished for stainless
steel material.
Application: attaching insulation on various metals
Features: easy welding, easy bending, best finished, long left time
 | Name: CD Weld Pins Fastener Material: Mild Steel Surface: Copper Coating Diameter: 3mm Length: 65mm |
CD Weld Pins Fastener Specification:
2.7mm (12GA) Capacitor Discharge CD Weld Pins Fastener
| Material | mild steel with copper coating or galvanized steel are standard, stainless steel and aluminum are available in special order |
| Diameter | 2.7mm (12GA) |
| Length | 3/4" 1" 1-1/2" 2" 2-1/2" 3" 3-1/2" 4" 4-1/2" 5" 5-1/2" 6" 7" 8" etc. |
3mm Capacitor Discharge CD Weld Pins Fastener
| Material | mild steel with copper coating or galvanized steel are standard, stainless steel and aluminum are available in special order |
| Diameter | 3mm |
| Length | 25mm 30mm 35mm 40mm 45mm 50mm 55mm 60mm 65mm 70mm 75mm 80mm 85mm 90mm 100mm 110mm 125mm 150mm etc. |
3.4mm (10GA) Capacitor Discharge CD Weld Pins Fastener
| Material | mild steel with copper coating or galvanized steel are standard, stainless steel and aluminum are available in special order |
| Diameter | 3.4mm (10GA) |
| Length | 1" 1-1/2" 2" 2-1/2" 3" 3-1/2" 4" 4-1/2" 5" 5-1/2" 6" 7" 8" 9" |
4 mm CD Weld Stud Inulation Pins
| Material | mild steel with copper coating or galvanized steel are standard, stainless steel and aluminum are available in special order |
| Diameter | 4mm |
| Length | 50mm 55mm 60mm 65mm 70mm 75mm 100mm 125mm 150mm, 240mm,270mm,370mm ect |
5 mm CD Weld Stud Inulation Pins
| Material | mild steel with copper coating or galvanized steel are standard, stainless steel and aluminum are available in special order |
| Diameter | 5mm |
| Length | 50mm 55mm 60mm 65mm 70mm 75mm 100mm 125mm 150mm, 240mm,270mm,370mm ect |
6 mm CD Weld Stud Inulation Pins
| Material | mild steel with copper coating or galvanized steel are standard, stainless steel and aluminum are available in special order |
| Diameter | 6mm |
| Length | 50mm 55mm 60mm 65mm 70mm 75mm 100mm 125mm 150mm, 240mm,270mm,370mm ect |

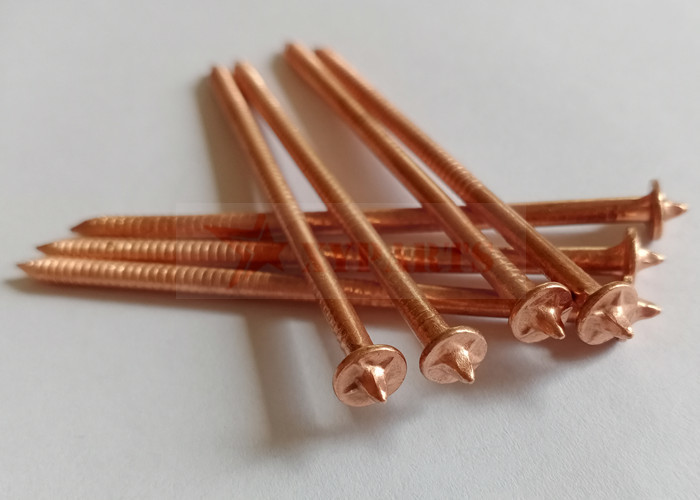

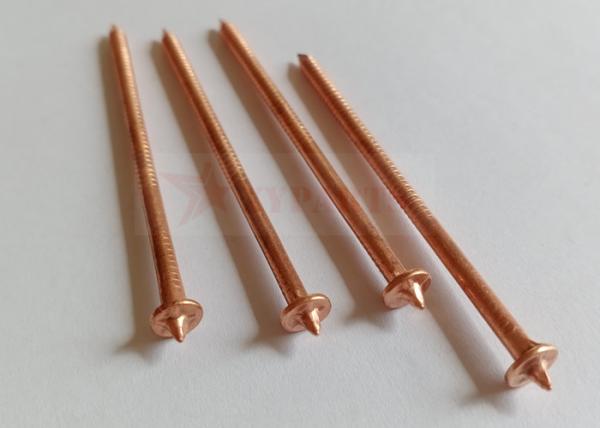

Pic Of Capacitor Discharge CD Weld Pins Fastener:
Package Of The CD Weld Pins Fastener:
| 1. 100 pcs, 200 pcs, 250pcs, 300pcs, 500 pcs in one plastic bag (according the pin length ), 2. 10 bags in one carton box, 3. then in one pallet 4. the package can be can according your request |
 |
FAQ Of Xiangyi Metal Product Co.,Ltd:
1. Are you a manufacture or a trader?
We are a manufacture, located in Hebei province, China.
2. Do you support product customization?
Yes, the material, the surface finish, the wire diameter, the length all could be customized.
3. Can i get samples?
Yes, samples for quality confirm are supported in our company.
4. How do you control and ensure product quality?
1) Confirm with you every details before quoting.
2) Before production, we will reconfirm all the details again.
3) During production, we strictly implement "IATF 16949 Quality Management System" standard.
4) We will send you videos and pictures during the production and shipment process.
5. What's your advantages?
Cooperate with us, we can ensure:
1) Competitive price: we sale what we manufacture.
2) On-time delivery: we have the auto-production line to ensure the on-time delivery.
3) Excellent quality: we have rich experience for, our products are in line with international standard.
4) Good after-sale service: we offer good after-sale service for each order.
