Thermal Power Point Carbon Steel Capacitor Discharge Spot Weld Pins With Copper Plating
Capacitor Discharge Spot Weld Pins Product Information :
A specialty type of Capacitor Discharge (CD) pin, the Powerbase weld pin can be welded through mill scale,
rusted or painted surfaces, without having to grind/clean the base metal. After the powerbase weld pin is welded
to the surface, a self-locking washer is installed to secure the insulation.
We recommend Capacitor Discharge Pins for welding to clean surfaces. For difficult surfaces the “Power Base”
Weld Pin is designed to weld through paint and rust to eliminate grinding of the base metal. Both are available
in various diameters and lengths.
We have various size for your reference ,special size pls contact us to make mold !
Capacitor Discharge Spot Weld Pins Specification :
| Specification of capacitor spot weld pins |
| Diameter Of weld nails | Diameter Of Flange diameter (Steel) | Length Of flange diameter (Aluminum) |
| 12GA 2.7mm | 0.180"(4.6mm) | 0.235"(6mm) |
| 10GA 3.4mm | 0.218"(5.5mm) | 0.255"(6mm) |
| Length is as your requirement, common size is 63.4mm, 84mm, 90mm, 114mm, 130mm |
| Material | carbon steel ,stainless steel ,copper ,aluminum |
| surface finished | copper plated or zinc coated for mild steel weld pins. |
| Fixing parts | 38mm self-locking washer and 32mm dome cap washer in common ,other size is available |
| Application | in shipping industry |

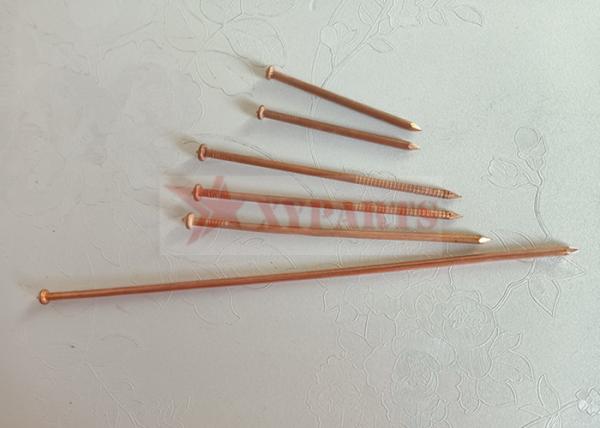

Pic Of Capacitor Discharge Spot Weld Pins :
Featurer Of Capacitor Discharge Spot Weld Pins :
| Features of Capacitor discharge spot weld pin |
| BETTER PLATING | weldpin shanks Zinc and Chromate plated exceeding SMACNA standards and providing a professional appearance.Climatech weldpin shanks are copper plated. |
| REDUCED DOWN TIME | Consistent point quality reduces frequency of machine adjustments. |
| STRONGER WELDS | Hardened steel point assures positive electrical contact for complete sheet to pin fusion. |
| CORROSION RESISTANCE | Plating exceeds current SMACNA standards for corrosion resistance. |
| TEMPERATURE RANGE | CD Weld pins function properly over normally accepted operating range of temperatures of 0 degrees C to 121degrees C and are not adversely affected at temperatures of 0 degrees C to 287 degrees C. |
| VIBRATIONS | CD Weld pins will not fatigue or be physically affected by vibrations normally found in high velocity air handling systems. |
Application Of Capacitor Discharge Spot Weld Pins :
The CD copper coating weld pin is a capacitor discharge weld insulation fastener, these insulation weld pins
work with a stud welding machine, weld the pins on the sheet metal, then put the insulation material through
the weld pins, press a self locking washer or metal clips or dome caps onto the pin, bend over or clip off the
pin to finish fastening insulation installation. Weld nails are usually used shipping industry.
Package Of Capacitor Discharge Spot Weld Pins :
>> Package
1. 500 pcs per bag, 10 bags per carton. 64 cartons per pallet.
2. to be your requirements.
>>> Delivery
Sample: DHL/EMS/UPS/TNT/EXPRESS
Large Order: we recommend you by SEA ,or by AIR if in an emergency.
XY PARTS Company Products line:
CD weld pins Lacing Anchors
bimetallic pin Cup head weld pins
Quilting pins perforated base pins
self adhesive pins aluminum solar panel mesh clip
all kinds of self locking washers, Dome caps.
