Insulation Accessories Beveled Cupped Head Weld Pins For Duct Liner

Hebei Xiangyi metal products Co., Ltd
Contact Now

Insulation Accessories Beveled Cupped Head Weld Pins For Duct Liner

Brand Name : XIANGYI

Model Number : cupped head weld pins

Certification : ISO9001-2015

Place of Origin : HEBEI

MOQ : 10,000 PCS

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 200.000pcs per week

Delivery Time : 10 day

Packaging Details : PP BAGS+CARTON+PALLET/CASE

Product Name : cupped head weld pins

Material : carbon steel ,stainless steel ,copper

Size : 12GA or 14GA or customized

Pin length : 25mm-250mm

Samples : available

Application : Fixing adiabatic materials in ducts

company style : factory

Certificate : ISO9001-2015

Contact Now

HVAC system insulation accessories cupped head weld pins product for duct liner

Cupped head weld pins product introuduce:

1. Certification: ISO9001
2. Material: Low Carbon Steel, material specifications or certification available.
3. Finish: Mild Steel pins are galvanized/coated, washer is galvanized.
4. Annealing: All steel pins are fully annealed unless otherwise specified.
5. Paper Insulating Washers:Available for welding through foil faced insulation.Paper insulating washers
can be ordered separately or factory installed.
6. Compatibity: All pins are compatible and recommended for use with all brands of CD stud welding
equipment

Cupped head weld pins product specification:

common size of duct liner Cupped Head Weld Pins
Cupped Head Weld Pins diameter Base size Length Material Finished
2.7mm 25mm, 30mm 15-250mm Mild steel ,stainless steel copper Zinc/copper plating
3mm 25mm, 30mm 15-250mm
3.4mm 25mm, 30mm 15-250mm

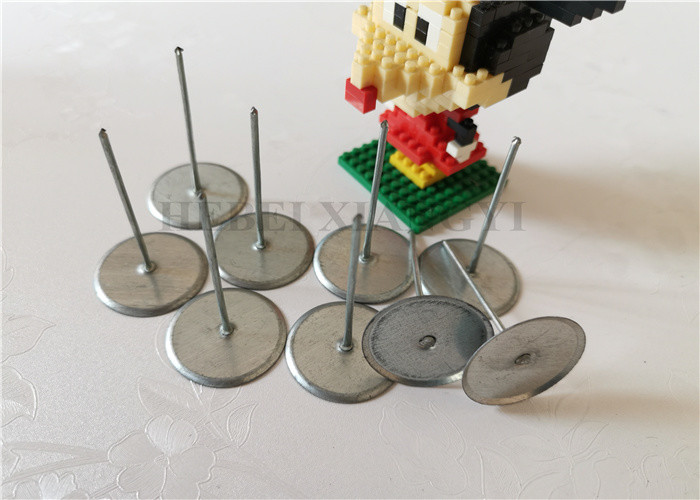

Insulation Accessories Beveled Cupped Head Weld Pins For Duct Liner

Feature of cupped head weld pins :

BETTER PLATING weldpin shanks Zinc and Chromate plated exceeding SMACNA standards and providing a professional appearance.Quilting Cup Head Insulation Pins are copper plated.
REDUCED DOWN TIME Consistent point quality reduces frequency of machine adjustments.
STRONGER WELDS Hardened steel point assures positive electrical contact for complete sheet to pin fusion.
CORROSION RESISTANCE Plating exceeds current SMACNA standards for corrosion resistance.
TEMPERATURE RANGE Quilting Cup Head Insulation Pins function properly over normally accepted operating range of temperatures of 0 degrees C to 121degrees C and are not adversely affected at temperatures of 0 degrees C to 287 degrees C.
VIBRATIONS Quilting Cup Head Insulation Pins will not fatigue or be physically affected by vibrations normally found in high velocity air handling systems.

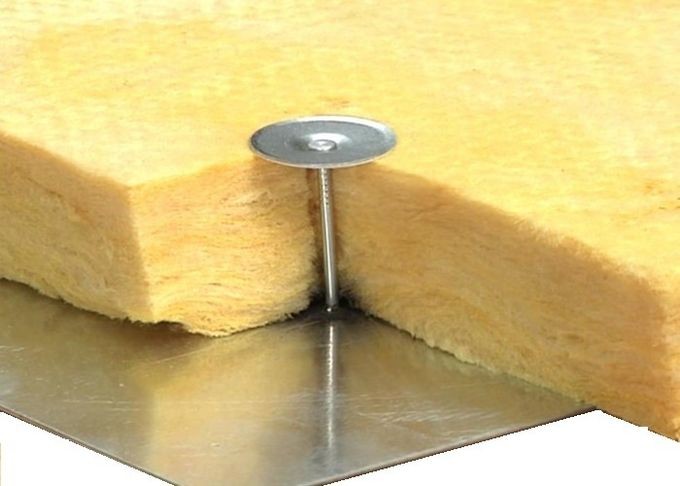

Cupped head weld pins installation:

Insulation Accessories Beveled Cupped Head Weld Pins For Duct Liner

Cupped head weld pins advantage:

Cupped Head:
Reduces jams and machinery down time while preserving the insulation.
Contact Head:
Oversized head increases the welding surface, resulting in a reduction in misfires and superior strength.
Point:
Forged diamond point for strength and weld consistency.

Insulation Accessories Beveled Cupped Head Weld Pins For Duct Liner

Xiangyi company introuduction :

Insulation Accessories Beveled Cupped Head Weld Pins For Duct Liner

Types Of Insulation Weld Pins
1) Ship use insulation pins ,insulation nails,insulation washer
2) Sound insulation cotton special welding nail
3) Plate welding nail
4) Screw Stud welding nail
5) We can also provide insulation pins use welding machine and screw stud welding machine
6) Shear studs
7) Aluminum insulation pins,stainless steel insulation pins,self-adhesive insulation pins
