Critter Guard Fastener J Hook Aluminum Solar Panel Clips For Bird Proofing System

Hebei Xiangyi metal products Co., Ltd
Contact Now

Critter Guard Fastener J Hook Aluminum Solar Panel Clips For Bird Proofing System

Brand Name : HUIHAO CUSTOM

Model Number : AL95

Certification : ISO9001-2015

Place of Origin : CHINA

MOQ : 10000 sets

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 500000 sets per 30 days

Delivery Time : 10 work days

Packaging Details : 100 pcs per bag or 60 pcs per bag or 500pcs per bags+ carton packages.

Product name : solar panel clips

Material : Aluminum

J nail size : 2.5mmx95mm

Washer size : 38mm, 30mmx30mm, 31mmx62mm

Application : fixing mesh on solar panel

Finished : b;ack color Anti-ultraviolet coating

Factory : yes

Small order : support

Contact Now

Bird Critter Guard Fastener J Hook Aluminum Solar Panel Clips For Bird Proofing

QUICK Details of solar panel clips

  • Material: aluminum and aluminum alloy
  • Solar panel clips including: J hook nails and self locking washers
  • J hook size in common: 2.5mmx95mm, 2.5mmx114mm
  • Self locking washer size: 40mmx40mm, 30mmx30mm, 30mmx60mm,38mm
  • QTY needed for installation:The number of clips needed will depend on the solar panel system.
  • Calculating the necessary number of clips: Use 2 clips for the short side of every exposed edge of a panel and 3 clips for the long side of every exposed edge of a panel.

Specification details of the solar panel clips-J hook nails

type material thickness length surface treatment
J pins aluminum 2.4mm 95mm, 114mm Phosphating
custom custom custom custom

specification details of the Solar panel aluminum anchor pins-self locking washer

type material thickness size finished
square self locking washer aluminum alloy 0.6mm 40mmx40mm black uv finished
round self locking washer aluminum alloy 0.6mm 32mm black uv finished
slot self locking washer aluminum alloy 0.6mm 64mmx30mm black uv finished
custom custom custom custom no

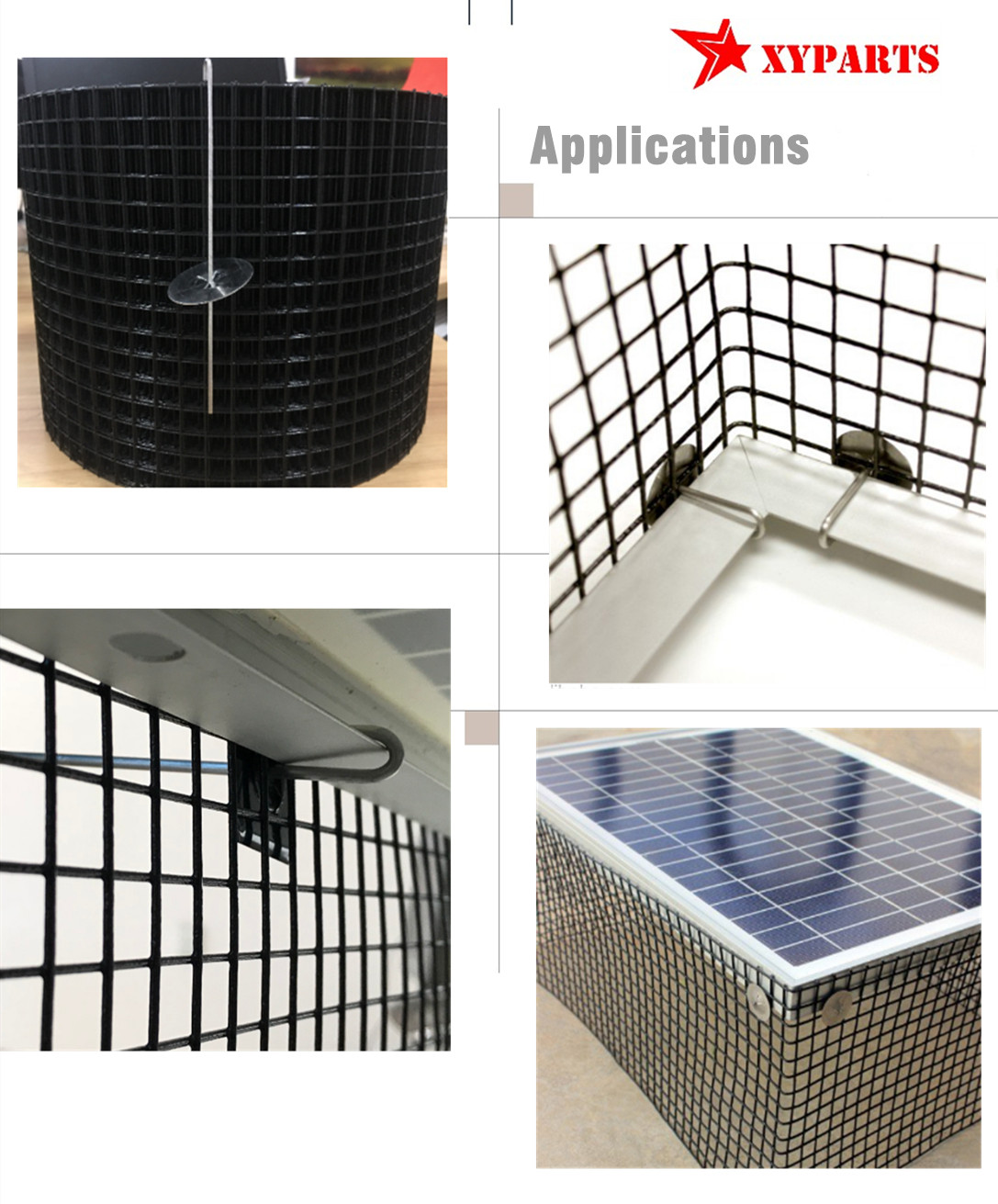

Applications of solar panel clips

Critter Guard Fastener J Hook Aluminum Solar Panel Clips For Bird Proofing System

Solar panel bird barrier, which includes a combination of mesh and clips, is designed to stop pest birds and prevent leaves and other debris from getting under solar arrays, protecting the roof, wiring, and equipment from damage. It also ensures unrestricted airflow around panels to avoid fire hazard caused by debris. The Bird Blocker qualify the features of long-lasting, durable, non-corrosive. This no drill solution provides long lasting and discreet exclusion to protect home solar panel rodent guard bird critter guard.


other xiangyi fasteners as follows:

Critter Guard Fastener J Hook Aluminum Solar Panel Clips For Bird Proofing System

insulation fasteners- CD weld pins, insulation hanger, self stick pins, perforated base pins, lacking anchor, lacing hook.

XIANGYI COMPANY INTRODUCTION

Critter Guard Fastener J Hook Aluminum Solar Panel Clips For Bird Proofing System

Critter Guard Fastener J Hook Aluminum Solar Panel Clips For Bird Proofing System
