250mm Pin Length Rock Wool Galvanized Steel Self Adhesive Insulation Hangers

Name: 250mm Pin Length Rock Wool Galvanized Steel Self Adhesive Insulation Hangers
Brand: HUIHAOCUSTOM
Price: 1 USD

250mm Pin Length Rock Wool Galvanized Steel Self Adhesive Insulation Hangers Manufactures

Brand Name : HUIHAOCUSTOM

Model Number : self stick pins

Certification : ISO9001-2015

Place of Origin : China

MOQ : 10000 insulation hanger with 10000 self locking washer

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 380000 sets per 30 days

Delivery Time : 15 work days

Packaging Details : Inner Plastic Bag+ Outer Carton in standard for self adhesive insulation hangers

Name : Self Adhesive Insulation Hangers

application : fixing rock wool insulation materials

pin feature : softly wire and easy bending

base type : 50 mm square double tape

hanger length : 38mm -230mm in standard

hanger diameter : 2.7mm , 3mm

Factory name : xiangyi parts

Surface treatment : zinc finished for hangers

Contact Now

Rock Wool Galvanized Steel Self Adhesive Insulation Hangers

Specification details of Rock Wool Galvanized Steel Self Adhesive Insulation Hangers

hanger diameter	base plate size	insulation hangers length
12ga ( 0.106 " )	2 " square	1 "
12ga ( 0.106 " )	2 " square	1 - 5 / 8"
12ga ( 0.106 " )	2 " square	2 "
12ga ( 0.106 " )	2 " square	2 - 1 / 2"
12ga ( 0.106 " )	2 " square	3 - 1 / 2"
12ga ( 0.106 " )	2 " square	4 - 1 / 2"
12ga ( 0.106 " )	2 " square	5 - 1 / 2"
12ga ( 0.106 " )	2 " square	6 - 1 / 2"
12ga ( 0.106 " )	2 " square	8 "
12ga ( 0.106 " )	2 " square	8 - 1 / 2"
12ga ( 0.106 " )	2 " square	9 - 1 / 2"
12ga ( 0.106 " )	2 " square	10 - 1 / 2"
12ga ( 0.106 " )	2 " square	12 "

Noted for galvanized steel self adhesive insulation hangers

for the pin diameter, we choosed galvanbized anneaded steel wire and aluminum wire for making pins.stainless steel softly wire for custom orders
for the pin length, the length can be meet 300mm.

How to install galvanized steel self adhesive insulation hangers?
The user is responsible for determining the suitability of the application. self adhesive insulation hangers must be applied to a clean, dry, non-porous surface thatis free of all oil, films, dust, rust, etc. Self-adhering insulation hangers are not recommended for concrete or painted surfaces. It is important that they not are used where operating temperatures can exceed 150° F at the point of adhesion. self adhesive insulation hangers should not be used on ceilings or roofs ofmetal buildings or any surface the reverse side of which may be exposed to heat concentration from sunlight, etc., direct or otherwise. Load per anchor should not exceed 3 lbs.

performance tape of Galvanized Steel Self Adhesive Insulation Hangers

Polyethylene foam with aggresive pressure sensitive rubber resin adhesive.
Service Temperature : -40 deg C to +70 Deg C
Highly Resistant to abrasion, corrosion and moisture.
Confirms to European Directive 2000/53 (Lead, Chromium VI, Mercury, Cadmium free)
10 Minutes 180 degree Peel Adhesion : 30 N/25mm
500 Hour static shear ( Stainless Steel) : 0.8 kg/cm3

Technical parameter

Foam density: 182kg/m³
Liner release value: 10 N/m
Peel Adhesion (23℃): 20 N/25mm
Application Temperature: 10℃ - Advisory
Static Shear: >1000 Hrs (PSTC)
Service Temperature (Minimum): -35℃
Service Temperature (Maximum): +90℃
Tensile Strength: (L) 113 N/cm² (CNS10487)(C) 85 N/cm²
Elongation: (L)170% (CNS 10487)(C) 150%
Shelf Life: 2 years (20℃ 65%RH)

Applications of Rock Wool Galvanized Steel Self Adhesive Insulation Hangers
square base insulation stick pins that is both fast and easy to install.
Suitable for fixing all types of insulation to concrete, brick, stone or block base material.Insulation fastening solutions for concrete and masonry, suitable for insulation materials such as mineral wool, EPS, XPS and fibreglass.

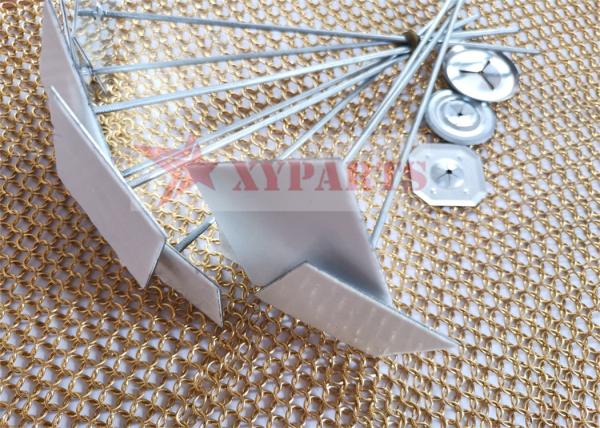

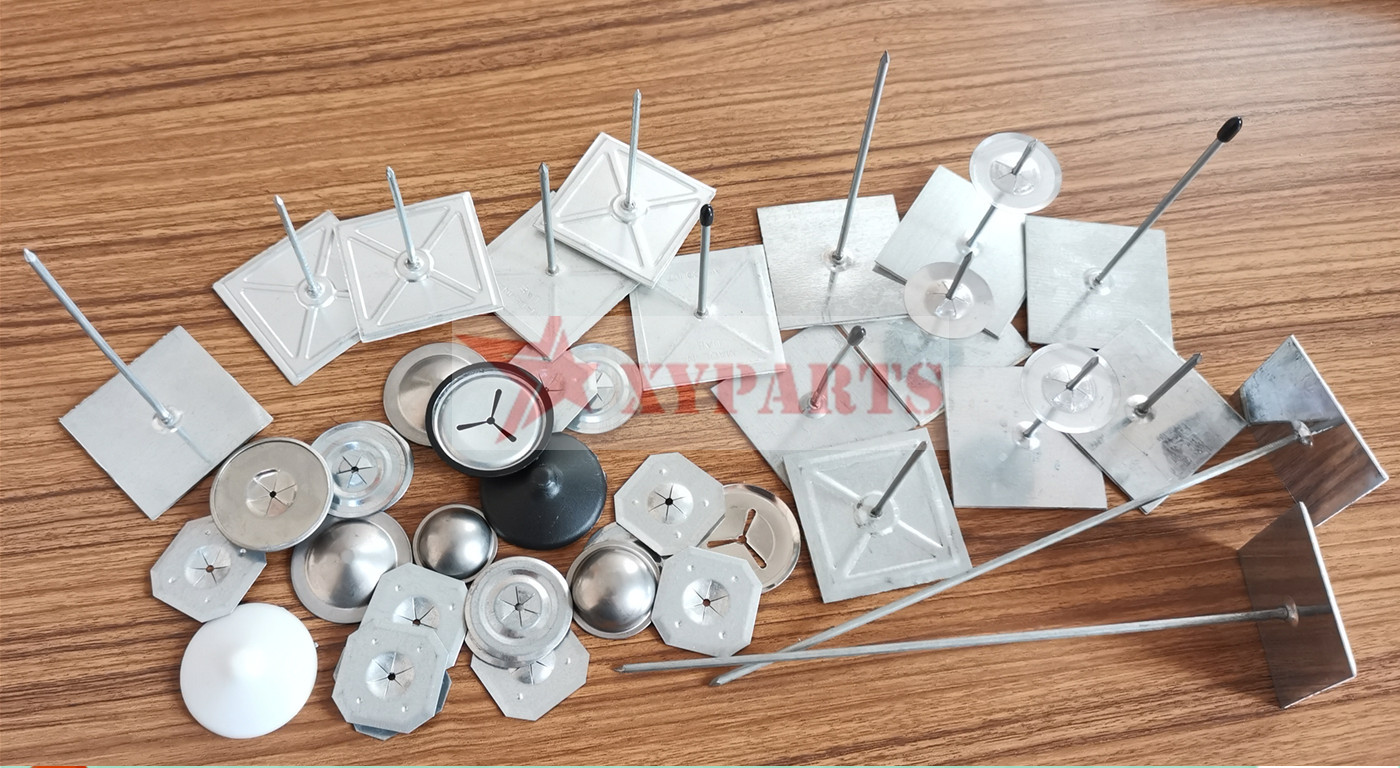

Images of Galvanized Steel Self Adhesive Insulation Hangers

250mm Pin Length Rock Wool Galvanized Steel Self Adhesive Insulation Hangers

Advantages of the Self Adhesive Insulation hangers

1. Environmentally-friendly
2. Light, dust free, fire retardant and easy to install
3. Heat reflection, heat insulation, sound insulation, counter radiation, counter vibration and shielding
4. During Summer: moisture barrier, sun protection, waterproof, energy saving consumed by cool air conditioning
5. During Winter: heat protection, remarkable energy saving consumed by warm air conditioning

HEBEI XIANGYI METAL PRODUCT CO.,LTD

HEBEI XIANGYI specializes in the production and operation of various standard and non-standard insulation fasteners. Our company established in 2011 and covers an area of more than 13,000 square meters, with a construction area of more than 9,000 square meters. We have more than 50 sets of fastener production equipment. hebei xiangyi has perfect testing equipment and supporting facilities for production, safety and environmental protection. We have passed the ISO 9001-2015 international quality system certification and have a strict product quality control system. HEBEI XIANGYI adheres to the mission of "With first-class management and technology to provide users with high-quality products. Serve our customers with advanced marketing concepts."
