M3 CD Studing Marine Rock Wool Insulation Pins Metal Weld With Speed Washers

Product Categories
Hebei Xiangyi metal products Co., Ltd
Contact Now

M3 CD Studing Marine Rock Wool Insulation Pins Metal Weld With Speed Washers

Brand Name : HUIHAOCUSTOM

Model Number : CD-M3

Certification : ISO9001-2015

Place of Origin : China

MOQ : 10000 SETS

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 600000 PCS PER MONTH

Delivery Time : 15 WORK DAYS

Packaging Details : 500 PCS PER PP BAG, 6 BAGS PER CARTON IN COMMON

Name : Insulation Metal Weld Pins

Type : CD WELD PINS

Length : 38 MM - 300 mm

Material : anneaded MS / SS / CO

Application : thermal insulation,Heat Insulation,Construction,fire resistance

Pin diameter : M3

Surface treatment : Copper coated, zinc plating and polished

Factory name : XIANGYI METAL

Contact Now

M3 CD Studing Marine Rock Wool Insulation Metal Weld Pins With Speed Washers

Quick details of the insulation metal weld pins

  • material treatment : anneaded mild steel wire , anneaded stainless steel wire, copper wire is for specifical order
  • diameter of weld pins: 2.7mm , 3 mm are in common size
  • length of weld pins: standard length are 38mm, 55mm, 63mm, 114mm, 123mm, 142mm , 203mm.
  • Surface treatment : copper plated , zinc coated for MS material, polished for SS material.
  • Application: fixing insulation material on board for marine
  • Features: easy welding, easy bending, best finished, long left time

Technical data of the insulation metal weld pins

modle wire diameter standard length of weld pin material
XY-m1 1MM 10MM SS / MS
XY-m1.5 1.5MM 15MM SS / MS
XY-m2 2.0MM 25MM SS / MS
XY-m2.7 2.7MM 38MM - 203 MM SS / MS / CO
XY-m3 3.0MM 45MM - 230MM SS / MS / CO

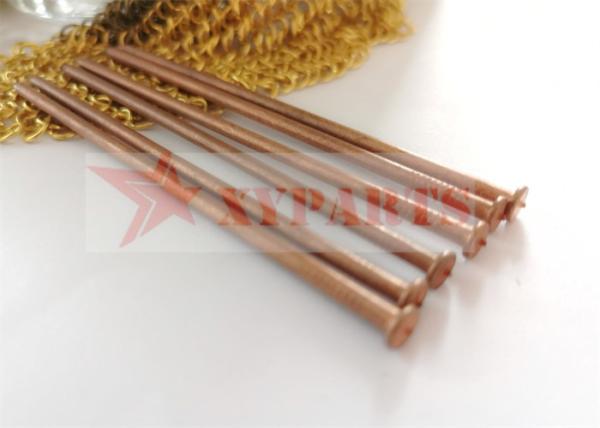

Images of insulation metal weld pins

M3 CD Studing Marine Rock Wool Insulation Pins Metal Weld With Speed Washers

Applications of the insulation metal weld pins

recommended for pin length before welding
1/2" insulation(all densities) 12.67mm
1" insulation(1-1/2"ib density) 17.63mm
1" foam 25.55mm
1"insulation(3ib densities) 23.72mm
1-1/2" insulation(all densities) 28.42mm
2"insulation(1-1/2"-2" ib density) 37.95mm
2"insulation(3ib densities) 48.77mm
3"insulation(all densities) 69.85mm
4" insulation(all densities) 95.00mm

M3 CD Studing Marine Rock Wool Insulation Pins Metal Weld With Speed Washers

Self locking washers for fixing rock wool with weld pins

M3 CD Studing Marine Rock Wool Insulation Pins Metal Weld With Speed Washers

XIANGYI METAL PRODUCT CO.,LTD

M3 CD Studing Marine Rock Wool Insulation Pins Metal Weld With Speed Washers

M3 CD Studing Marine Rock Wool Insulation Pins Metal Weld With Speed Washers
