M3 Aluminum Base Capacitor Discharge Weld Bimetallic Pin With Copper Plated Nail
Capacitor Discharge Weld Bimetallic Pin Product Introduce:
Product Name:capacitor discharge weld bimetallic pin
Material:Low carbon steel, Aluminum, Stainless steel
Plating:Galvanized coating for low carbon steel ,No Plating for stainless steel
Accessories: Self-Locking washers (clips),plastic dome cap
Capacitor discharge weld bimetallic pins are primarily designed as welded fasteners to secure blanket and board insulation to metal heating and air conditioning ducts, ovens, tanks and other hot or cold equipment.
BIMETAL pins have an aluminum weld base designed to be welded to thin gauge aluminum sheet material using the Capacitors Discharge welding process, but may also be welded with the Short Cycle Drawn Arc weld process on thicker aluminum plate..
BIMETAL pins are designed tip ignition according to the capacitors discharge welding process.
Capacitor Discharge Weld Bimetallic Pin Specification :
| common size of Capacitors Discharge Weld BiMetallic Pins : |
| BI-Metallic Pin diameter | base size | length |
| 2.7mm | 8x11 | 15-500mm |
| 3mm | 8x11 | 15-500mm |
| 3.4mm | 8x11 | 15-500mm |
Capacitor Discharge Weld Bimetallic Pin Pic:

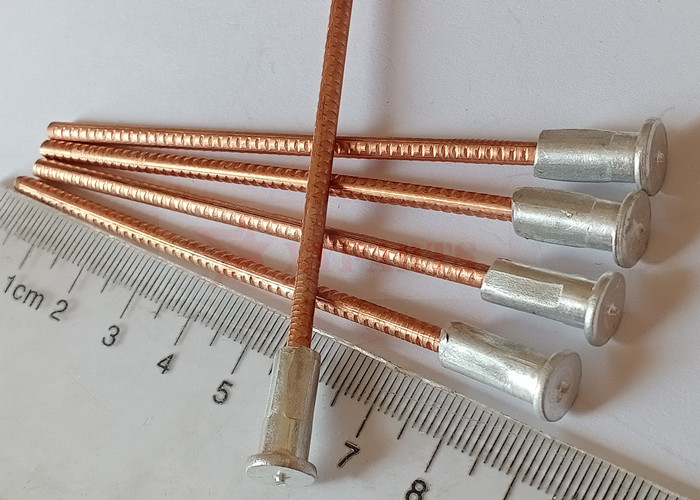

| Product Name:bimetallic pin Base Material : aluminum head Shaft Material: carbon steel surface treatment :Copper plated Pin diameter(ø) :3.0mm in common Pins length(L) :30-125mm Head size:6mmdia*15mm length Washer: round or square self locking washers, or dome cap washers |  |

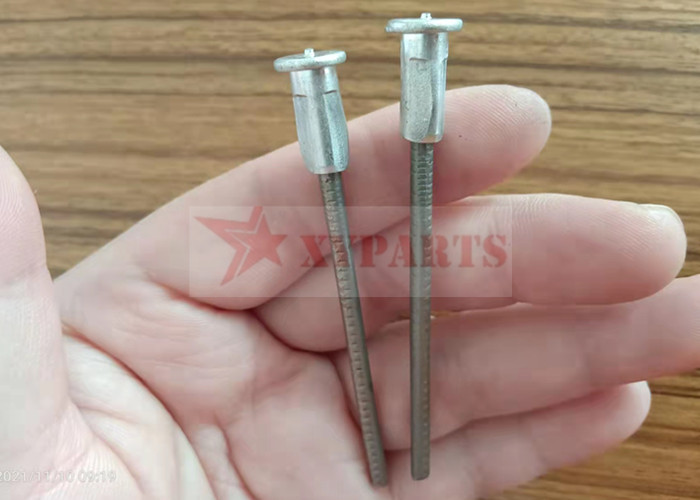

 | Product Name:bimetallic pin
Base Material : aluminum head shaft Material: stainless steel Shaft surface treatment: polish
Pin diameter(ø) :3.0mm in common
Pins length(L) :65mm
Head size:6mmdia*15mm length
Washer: round or square self locking washers, or dome cap washers
|
Features of Capacitor Discharge Weld Bimetallic Pin :
| Features of Capacitors Discharge Weld BiMetallic Pins |
| BETTER PLATING | weldpin shanks Zinc and Chromate plated exceeding SMACNA standards and providing a professional appearance.Climatech weldpin shanks are copper plated. |
| REDUCED DOWN TIME | Consistent point quality reduces frequency of machine adjustments. |
| STRONGER WELDS | Hardened steel point assures positive electrical contact for complete sheet to pin fusion. |
| CORROSION RESISTANCE | Plating exceeds current SMACNA standards for corrosion resistance. |
| TEMPERATURE RANGE | CD Weld pins function properly over normally accepted operating range of temperatures of 0 degrees C to 121degrees C and are not adversely affected at temperatures of 0 degrees C to 287 degrees C. |
| VIBRATIONS | CD Weld pins will not fatigue or be physically affected by vibrations normally found in high velocity air handling systems. |

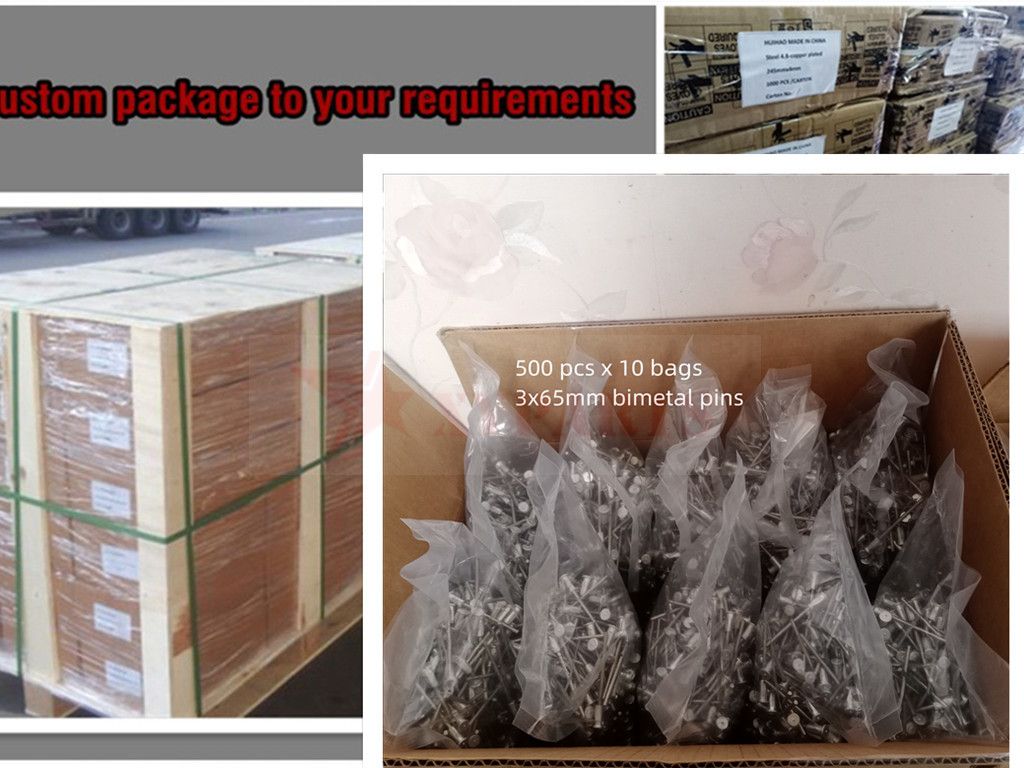

Package Of Capacitor Discharge Weld Bimetallic Pin:
| Material of the shaft | Material fo the head | Length of the head | Total length | Packing of the Bi-metallic pins |
| Stainless steel | Aluminum | 15mm in common | 35mm | 400pcs/bag,10bags/carton |
| Stainless steel | Aluminum | 15mm in common | 45mm | 350pcs/bag,10bags/carton |
| Stainless steel | Aluminum | 15mm in common | 55mm | 300pcs/bag,10bags/carton |
| Stainless steel | Aluminum | 15mm in common | 65mm | 250pcs/bag,10bags/carton |
| Stainless steel | Aluminum | 15mm in common | 80mm | 200pcs/bag,10bags/carton |
| Stainless steel | Aluminum | 15mm in common | 95mm | 150pcs/bag,10bags/carton |
XY PARTS Company introuduce:
Hebei Xiangyi metal products company is a insulation fasteners/insulation anchors manufacturing company,
we produce all kinds of insulation pins and washers.can make mold according your drawing pic ,Our products
is as following :
CD weld pins Lacing Anchors
bimetallic pin Cup head weld pins
Quilting pins perforated base pins
self adhesive pins aluminum solar panel mesh clip
all kinds of self locking washers, Dome caps.
