30mm Diameter Stainless Steel Insulation Dome Cap Washers For Fixing Insulation Pin
Quickly Detail Of Stainless Steel Dome Cap Washers :
Product Name :stainless steel dome cap washers
Material:stainless steel ,galvanized ,aluminum ,PE cover
Surface treatment :polish ,galvanized, white or black spraying coated
Diameter: 22mm,25mm,30mm,35mm,40mm,43mm
Packing :usually it is 100/200/300/500 pcs in one carton ,special package to be request
Dome cap washers made to conceal the tips of lacing hook pins, or lacing anchor pins, or quilting pins,
or hangers in the installing or fabrication of insulation mats or jacekets, when these pins pierce through
the insulation with tips exposed. Dome cap washers own the property of self-locking.
Pls note that :we can accept special style of customization ,send us sample or drawing ,we can
makemold for customer's style
Specification Of Stainless Steel Dome Cap Washers :
| Term | dimension | height | material | finished |
| XY-22 | 22MM | 7MM | G.S, MS, SS, AL | MS: Zinc coated SS: POLISHED AL: white or black spraying coated |
| XY-25 | 25MM | 8MM | G.S, MS, SS, AL |
| XY-27 | 27MM | 8MM | G.S, MS, SS, AL |
| XY-30 | 30MM | 10MM | G.S, MS, SS, AL |
| XY-40 | 40MM | 8MM | G.S, MS, SS, AL |
| XY-50 | 50MM | 12MM | G.S, MS, SS, AL |

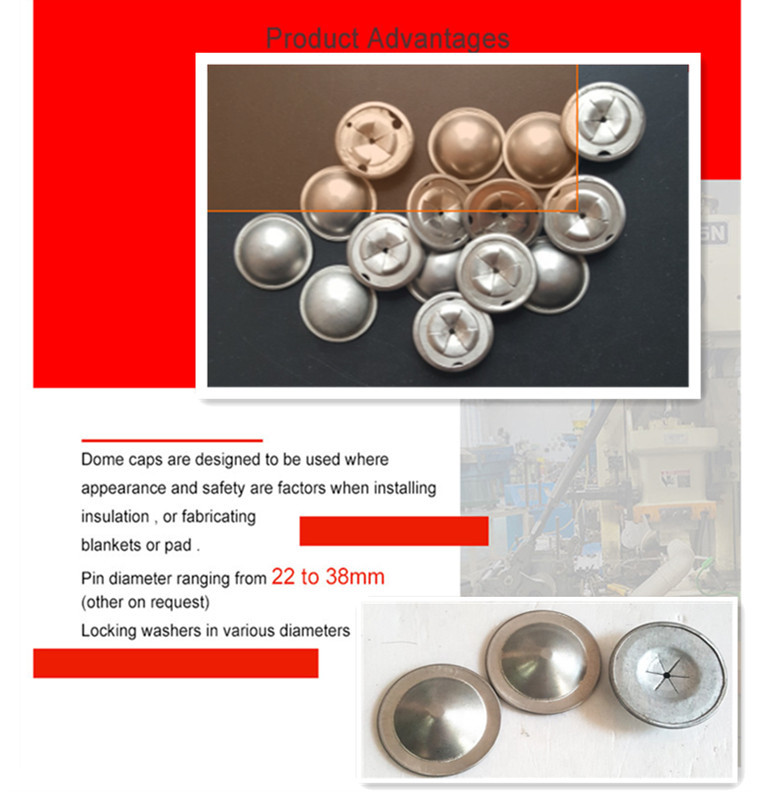

Pic Of Stainless Steel Dome Cap Washers :
Usages of Of Stainless Steel Dome Cap Washers :
Domed caps washer are designed to be used where appearance and safety are major concerns. For best
results, pins should be 1/4 in. longer than the insulation thickness.
Secure insulation with a self-locking washer, then install the dome cap to cover the nail point.Silver Dome
Caps washer are the most economical and can be painted to match any color fabric. They also are used
on FRK faced material.
Black Dome Caps washer are the preferred choice when installing black fiberglass acoustic board or with
black fabrics.White Finish Washers are used on ASJ faced material or white fabrics.
Package Of Stainless Steel Dome Cap Washers :
| cap size | qty/ bag | bag qty/ carton | carton size |
| 22mm | 500 pcs | 6 bags | 41cmx28cmx17cm |
| 27mm | 300pcs | 6 bags | 41cmx28cmx17cm |
| 30mm | 300pcs | 6 bags | 41cmx28cmx17cm |
| 40mm | 200pcs | 5 bags | 41cmx28cmx17cm |
| 50mm | 100pcs | 8 bags | 41cmx28cmx17cm |
XY PARTS Company introuduce:
Hebei Xiangyi metal products company is a insulation fasteners/insulation anchors manufacturing company,
we produce all kinds of insulation pins and washers.can make mold according your drawing pic ,Our products
is as following :
CD weld pins Lacing Anchors
bimetallic pin Cup head weld pins
Quilting pins perforated base pins
self adhesive pins aluminum solar panel mesh clip
all kinds of self locking washers, Dome caps.
