Carbon Steel Rock Wool Self Adhesive Insulation Pin For HAVC Systerm
Rock Wool Self Adhesive Insulation Pin Basis Information :
Production:Self adhesive insulation pin
Material :carbon steel or stainless steel
Base Plate:50mmx50mm
Base Type: self adhesive base
self adhesive insulation pin is also called double-sided adhesive insulation pin , the advantage of self
adhesive insulation pin is convenient for worker to install ,simple bonding ,saving time and reducing
labor cost ,usually the base plated is galvanized plate ,the pin can be carbon steel or aluminum ,the
pin must be after annealing ,then easy to bend over it
Self adhesive insulation pin are perfect for installing fiberglass or rubber insulation blankets or polystyrene
board ,so widly used to metal buildings ,concrete foundations-even the the underside of wooden foors
Rock Wool Self Adhesive Insulation Pin Specification :
| rock wool self adhesive insulation pins |
| pin diameter | tape base | pin length |
| 12 ga (.106)/ 3mm | 50mm Square | 1 |
| 12 ga (.106)/ 3mm | 50mmSquare | 1-5/8 |
| 12 ga (.106)/ 3mm | 50mm Square | 2-1/2" |
| 12 ga (.106)/ 3mm | 50mm Square | 3-1/2" |
| 12 ga (.106)/ 3mm | 50mm Square | 4-1/2" |
| 12 ga (.106)/ 3mm | 50mm Square | 5-1/2" |
| 12 ga (.106)/ 3mm | 50mm Square | 6-1/2" |
| 12 ga (.106)/ 3mm | 50mm Square | 8" |
| 12 ga (.106)/ 3mm | 50mm Square | 8-1/2" |
| 12 ga (.106)/ 3mm | 50mm Square | 9-1/2" |
| 12 ga (.106)/ 3mm | 50mm Square | 10-1/2" |
| 12 ga (.106)/ 3mm | 50mm Square | 12" |

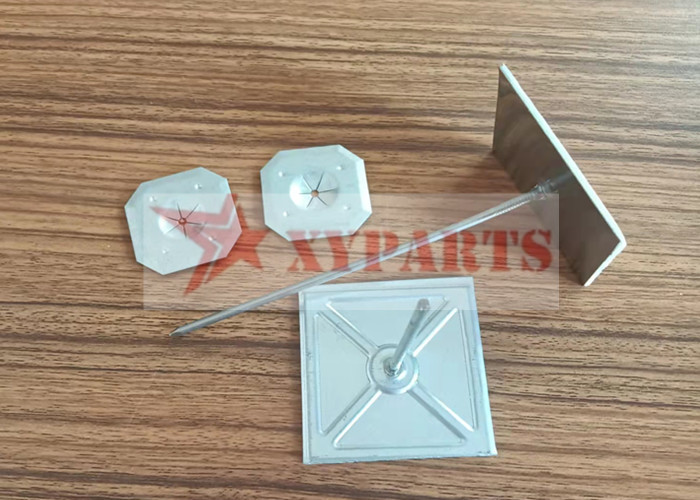

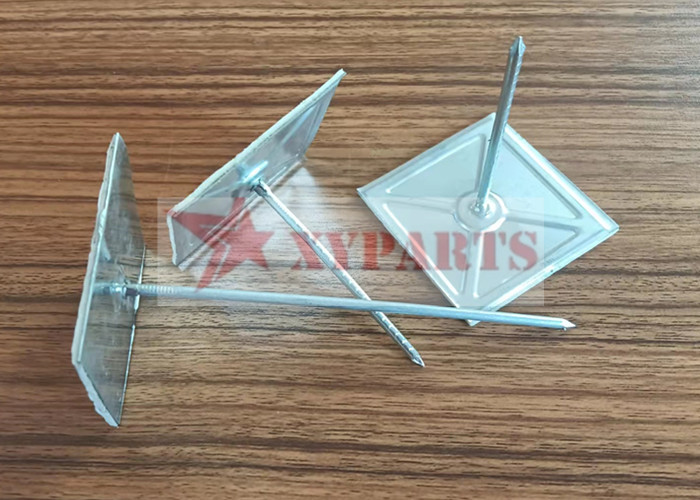

Rock Wool Self Adhesive Insulation Pin Pic :
XY PARTS Company introuduce:
Hebei Xiangyi metal products company is a insulation fasteners/insulation anchors manufacturing company, we produce all
kinds of insulation pins and washers.can make mold according your drawing pic ,Our products is as following :
CD weld pins Lacing Anchors
bimetallic pin Cup head weld pins
Quilting pins perforated base pins
self adhesive pins aluminum solar panel mesh clip
all kinds of self locking washers, Dome caps.
Rock Wool Adhesive Insulation Pin Buying guide :
1. choose annealing wire for the pin
soft wire is easy to bend when fixing rock wool material with self locking washer
2.common size is 2.7mm ,3.0mm wire to make the pin
2.7mm and 3.0mm wre diamerer is standard size for insulation pin ,at the same time ,the diameter is
based on the pin length
3. the base is square hardness metal sheet
hardness metal sheet is more firmly,no-shedding ,non-deformable
