14 Gauge Stainless Steel Lacing Anchors For Fabrication Of Thermal Insulation Products

Brand Name : XIANGYI

Model Number : Stainless Steel Lacing Hook Anchors

Certification : ISO9001-2015

Place of Origin : China

MOQ : 10000 pcs lacing anchors

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 450000 pcs per 30 work days

Delivery Time : 15 work days

Packaging Details : carton + pallet for metal lacing anchors

Name : 14 Gauge Stainless Steel Lacing Hook Anchors

Head Thickness : 1.0mm

Material : Stainless Steel

Head Size : 22mm or 30mm

Feature : Easy Bending, Easy Installation

Pin Diameter : 14ga, 12ga is standard

Application : Insulation covers, Insulation blankets

Pin Length : 4-1/2" or 2-1/2" is standard

Samples : Supported

Self Locking Washer Size : 25mm

Contact Now

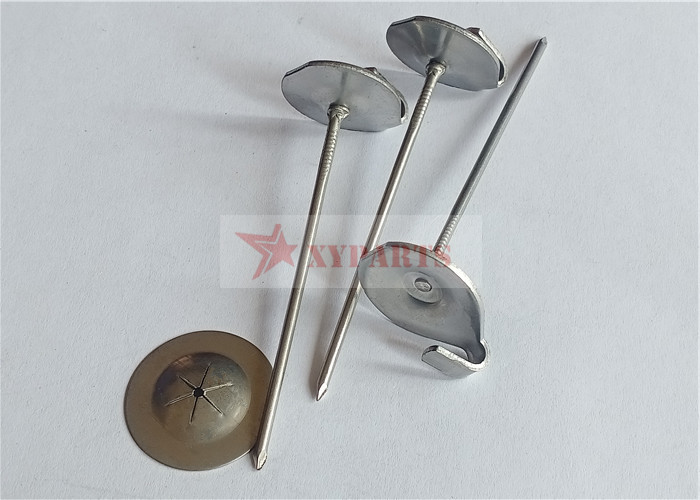

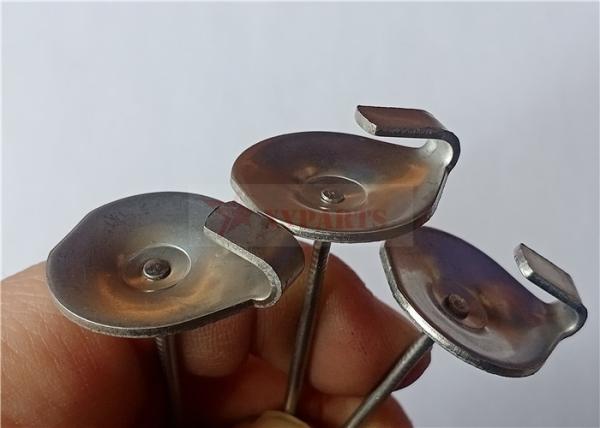

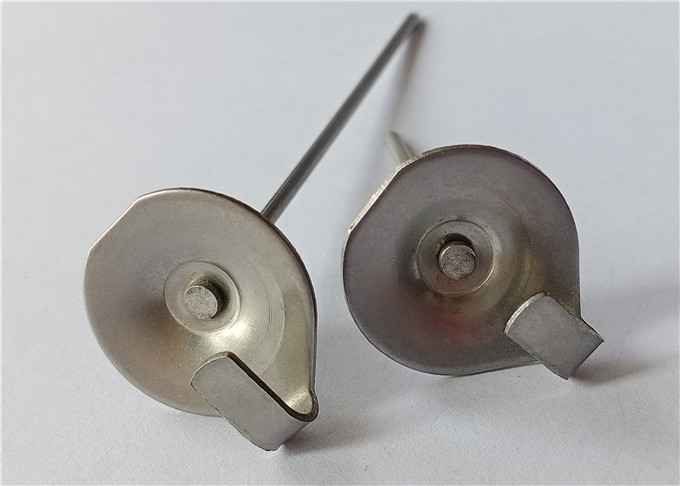

14 Gauge Stainless Steel Lacing Hook Anchors For The Fabrication Of Thermal Insulation Products

Quick Details Of The 14 Gauge Stainless Steel Lacing Hook Anchors:

14 Gauge Stainless Steel Lacing Hook Anchors are used for such thermal insulation products,

such as expansion joints and removable/reusable thermal insulation blankets.

Item: 14 Gauge Stainless Steel Lacing Hook Anchors For The Fabrication Of Thermal Insulation Products

Manufacture: Xiangyi Parts

Material: Stainless Steel

Head Thickness: 1.0mm

Head Diameter: 22mm

Hook Size: 5x11mm

Hook Thickness: 1.0mm

Pin Diameter: 2.0mm (other diamter also available)

Pin Length: 63.5mm (other length also available)

Self Locking Washer Material: Stainless Steel

Self Locking Washer Size: 25mm

14 Gauge Stainless Steel Lacing Anchors For Fabrication Of Thermal Insulation Products 14 Gauge Stainless Steel Lacing Anchors For Fabrication Of Thermal Insulation Products

Specifications Of Stainless Steel Lacing Hook Anchors For Thermal Insulation Products:

1. Stainless steel is a popular material while this lacing hook anchors is also made in mild steel.

2. Stamped "no ab" to denote 'no asbestos'.

3. The tabbed head is about 7/8" (22mm) diameter or 1-1/5" (30mm) diameter.

4. The nail can be 12 gauge (2.7mm) or 14 gauge (2.0mm) or others in pin diameter.

5. 2-1/2" (63mm )& 4-1/2" (114mm) are standard pin length

6. Typical application is for the fabrication of removable insulation blankets or covers of pads.

Origin Hebei, China
Factory Xiangyi Metal Products Co.,Ltd
Name Stainless Steel Lacing Hook Anchors With Self-locking Washers
Material stainless steel
Head one side is stamped with "A" "B"
Head Type round or rectangle
Head Size 22mm, 30mm,
Head Thickness 1mm
Hook Size 5mmx11mm or 5mmx15mm
Pin Diameter

2mm, 2.7mm etc.

Pin Length 63.5mm, 114mm etc.
Self-locking Washer Size 25mm etc.
Self-locking Washer Thickness 0.4mm etc.
Self-locking Washer Material stainless steel
14 Gauge Stainless Steel Lacing Anchors For Fabrication Of Thermal Insulation Products

Related Products Of Stainless Steel Lacing Hook Anchors For Thermal Insulation Products:

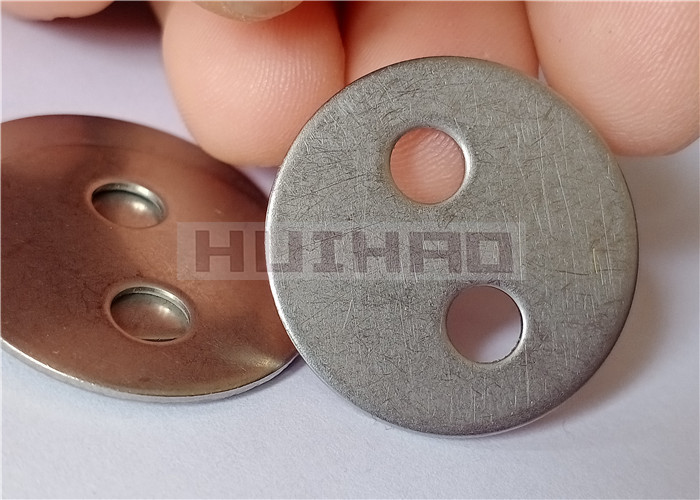

14 Gauge Stainless Steel Lacing Anchors For Fabrication Of Thermal Insulation Products Item: Stainless Steel Lacing Washers
Material: Stainless Steel
Diameter: 1" / 25mm
Thickness: 1mm
Type: With two 3/16" / 5mm hole in the center

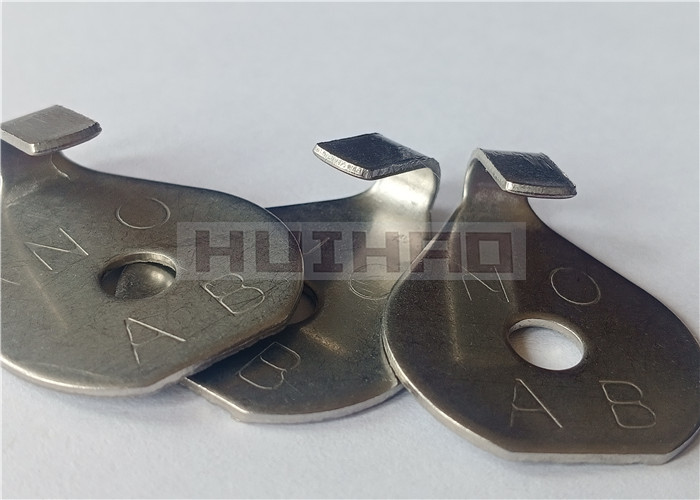

14 Gauge Stainless Steel Lacing Anchors For Fabrication Of Thermal Insulation Products Item: Stainless Steel Lacing Hook Washers
Material: Stainless Steel
Diameter: 7/8" / 22mm
Thickness: 1mm
Type: With one 3/16" / 5mm hole in the center
Hook Size: 5x11mm

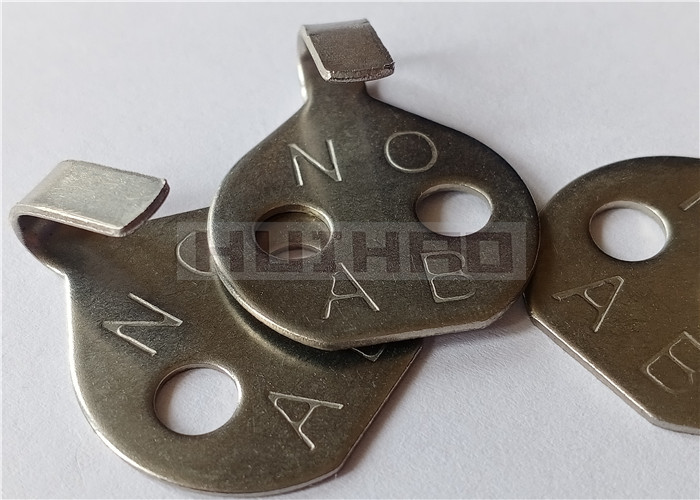

14 Gauge Stainless Steel Lacing Anchors For Fabrication Of Thermal Insulation Products Item: Stainless Steel Lacing Anchor Washers
Material: Stainless Steel
Diameter: 7/8" / 22mm
Thickness: 1mm
Type: With two 3/16" / 5mm hole in the center
Hook Size: 5x11mm

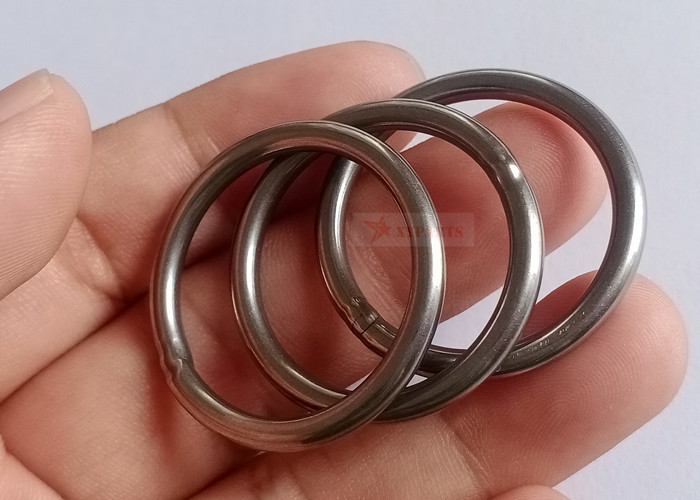

14 Gauge Stainless Steel Lacing Anchors For Fabrication Of Thermal Insulation Products Item: Stainless Steel Lacing Rings
Material: Stainless Steel
Ring Diameter: 30mm
Wire Diameter: 3mm

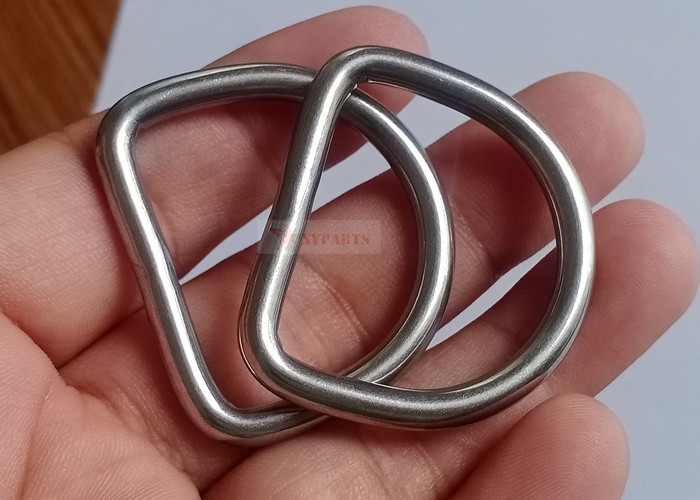

14 Gauge Stainless Steel Lacing Anchors For Fabrication Of Thermal Insulation Products Item: Stainless Steel Lacing Rings
Material: Stainless Steel
Ring Diameter: 25x30mm
Wire Diameter: 1mm

FAQ Of Xiangyi Parts:

1. Are you a manufacture or a trader?

We are a manufacture, located in Hebei province, China.

2. Do you support product customization?
Yes, the material, the surface finish, the wire diameter, the length all could be customized.

3. Can i get samples?
Yes, samples for quality confirm are supported.

4. Can you accept small orders?

Yes, for common material and size, we accept small orders.

5. How do you control and ensure product quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

6. Advantage Of Xiangyi Parts.

Cooperate with us, we can ensure:

1) Competitive price: we sale what we manufacture.

2) On-time delivery: we have the auto-production line to ensure the on-time delivery.

3) Excellent quality: we have rich experience, our products are in line with international standard.

4) Good after-sale service: we offer good after-sale service for each order.

14 Gauge Stainless Steel Lacing Anchors For Fabrication Of Thermal Insulation Products
